SEG fabric lightboxes are the modern alternative to rigid lightboxes — slim aluminium frame, tension fabric face, changeable graphics. The tier differences come from frame thickness, fabric print quality, LED evenness, and whether your graphic has a blackout layer.
Generic aluminium SEG extrusion at 80mm depth. Polyester fabric with solvent ink. Generic LED bar. Fixed — no fabric swap.
50mm slim SEG extrusion. Dye-sublimation polyester — more vibrant, accurate colour. Tier-1 LED bar (Epistar equiv) — even wash. One replacement fabric panel included.
35mm ultra-slim snap-lock SEG. Dye-sub fabric with blackout inner — zero light bleed. Samsung equiv 5-step MacAdam LED. Meanwell driver. Two replacement panels + carry bag.

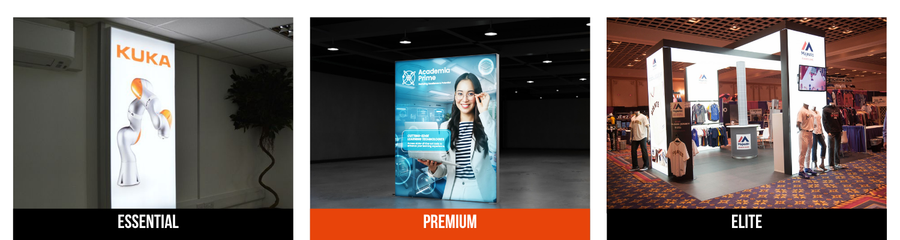

| Spec | Essential | Premium ★ | Elite |
|---|---|---|---|
| Frame Depth | 80mm | 50mm slim | 35mm ultra-slim |
| Fabric Print | Solvent polyester | Dye-sublimation | Dye-sub + blackout inner |
| LED | Generic bar | Tier-1 (Epistar/equiv) | Samsung equiv 5-step binned |
| Driver | Generic CE | Named-brand CE | Meanwell or equiv |
| Graphic Swap | Fixed — no swap | 1× swap included | 2× swaps + carry bag |
| Warranty | 1 year | 2-year NBCare™ | 2-year NBCare™ |
Slim aluminium frame with tension fabric face pushed into silicone-edged channel. LED bars illuminate the graphic. Fabric is removable and replaceable
Solvent prints on surface — decent colour. Dye-sub bonds ink into fibres — far more vibrant, accurate, no surface cracking when stretched.
Eliminates light bleed at edges. Without it, LEDs glow through the silicone channel creating a visible line around the frame.
Essential: no. Premium: yes, 1 swap included. Elite: snap-lock tool-free change, 2 panels + carry bag included.
80mm: budget/trade show. 50mm: permanent retail/corporate. 35mm: luxury/architectural — nearly flush with wall.
Essential: uneven, brighter near LED bar. Premium: Tier-1 even wash. Elite: Samsung 5-step MacAdam — perfectly uniform, no colour variation.
Standard SEG is indoor only. For outdoor, use a weatherproof rigid lightbox (IP65/IP67) instead.
Yes. Frames boxed flat, fabric panels packed separately with tissue. Perth, Sydney, Melbourne, Brisbane, Adelaide + regional.
ell us the size, whether you need graphic swaps, and where it will be installed — we recommend the right tier.
